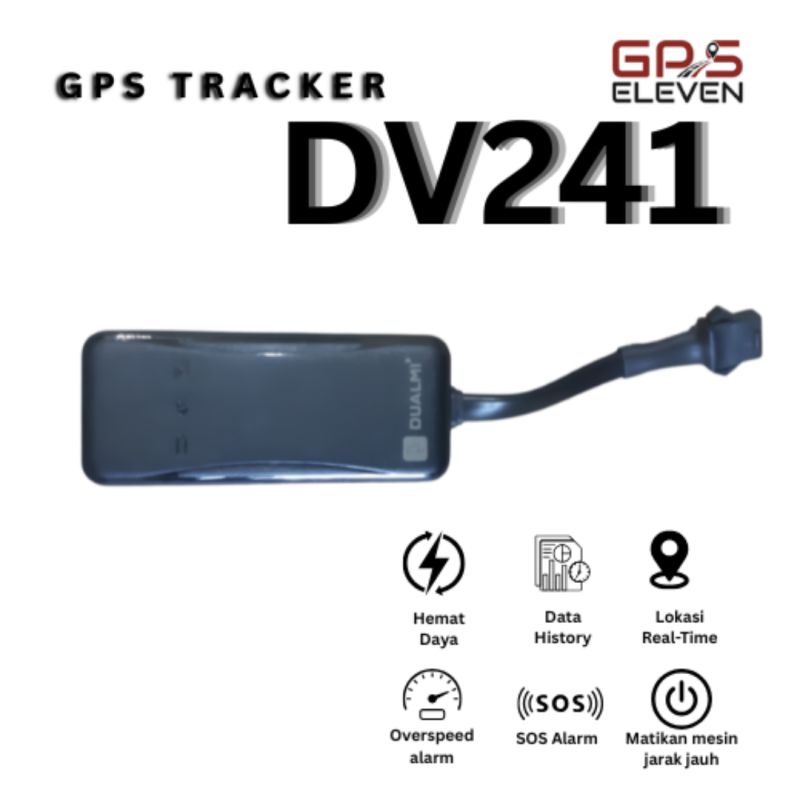

DV241 GPS 2G Vehicle Tracker

DV241 adalah pelacak GPS kendaraan mikro 2G . Perangkat ini mendukung rentang input tegangan lebar 9-90V dan dapat digunakan secara luas untuk melacak lokasi kendaraan seperti mobil, truk, sepeda motor, dan kendaraan listrik. DV241 memiliki antena satelit besar 25*25mm terintegrasi dengan kemampuan pencarian satelit yang hebat dan penerimaan sinyal yang kuat untuk penentuan posisi yang tepat. DV241 dengan eksterior hitam, sehingga mudah disembunyikan. Perangkat ini cocok untuk pemantauan kendaraan, pencegahan pencurian, dan manajemen kendaraan roda dua. Produk ini mendukung penentuan posisi waktu nyata, pemutaran riwayat, pagar geografis (geofence), kontrol jarak jauh bahan bakar dan daya, dll.

Antenna : Built-in optimized ceramic satellite antenna, GSM antenna
Led Indicator : GNSS(blue), Network (green)
Internal Battery : 55mAh/3.7V industrial grade lithium polymer battery
Standby Current : ≤5mA (powered by built-in battery)
Size : 74(L)*30(W)*13(H) mm
Weight : 30g
Working Voltage : 9-90VDC
Working Temperature : -20℃ to +70℃

Network
Celluar : gsm
Bands : 850/900/1800/1900MHz Memory : 32+32Mb
Phase Error : RMS phase error <5, peak phase error <20
Phase Error :GSM1800/GSM1900:30±2dBm
GSM1800/GSM1900:30±2dBm
Maxi. Frequency Error :±0.1ppm
Receiving Sensitivity : -102dBm

GNSS
Frequency :BDSB1, 1561.098MHz ； GPS L1,1575.42MHz
RF Channel : Auto Switch Between GPS and Beidou Singal / Dual Channel
Number of Channels : 66
Antenna Size : 25x25x22mm
Positioning Accuracy : ＜10m
Tracking sensitivity : -165dBm
Acquisition sensitivity : -148dBm
TTFF Avg. hot start: 1sec (open sky) , Avg. cold start: 32sec (open sky)

-Real time tracking Positioning : accuracy <10m in open outdoor environments
-Power cut off alarm : The device will trigger a power cut off alarm when the external power is disconnected or the connecting cable is cut
-Low external battery alarm : When the device detects that the external power voltage is lower than the set threshold, the device will trigger an low external power battery alarm.
-Low internal battery alarm : When the device detects that the internal battery voltage is lower than the set threshold, the device will trigger an low internal battery battery alarm.
-Overspeed alarm : The vehicle speed threshold can be set through the platform or SMS. When the vehicle's speed exceeds the threshold within the set time, an overspeed alarm will be reported.
-Vibration alarm : When the vehicle ignition is off and in a stationary state, the device detects vehicle vibration and a vibration alarm will be reported.
