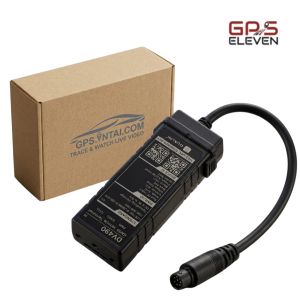

DV490 GPS 4G Vehicle Tracker

DV490 adalah terminal pelacakan kendaraan canggih yang dilengkapi dengan dukungan jaringan ganda (4G + 2G) untuk komunikasi yang andal dan tanpa gangguan. Dilengkapi dengan antena BeiDou/GPS berkinerja tinggi 25x25x4mm terintegrasi, perangkat ini memberikan kemampuan akuisisi satelit yang ditingkatkan dan akurasi posisi yang tepat.

Gps ini mempunyai opsi ekspansi komprehensif termasuk tombol darurat SOS, integrasi speaker dan mikrofon, input analog, kontrol relai, dan antarmuka TTL/485 untuk perangkat periferal, sehingga dapat disesuaikan dengan berbagai skenario aplikasi.
Dengan peringkat tahan air IP67, DV490 dirancang untuk berkinerja andal bahkan dalam kondisi operasi yang keras.

Main
Antenna :Built-in optimized ceramic satellite antenna, 4G bracket antenna
Led Indicator : GNSS(blue), Network (green), Power (red)
Internal Battery :300mAh/3.7V industrial grade lithium polymer battery
Standby Current : ≤5mA (powered by built-in battery)
Color : Black
Size : 88(L)*38(W)*17(H) mm
Weight : 45g
Working Voltage : 9-90VDC
Working Temperature : -20℃ to +70℃

N e t w o r k
Celluar : 4G LTE + 2G
Bands : EU Version:
LTE-FDD: B1/B3/B5/B7/
B8/B20
GSM: 900/1800MHz
LA Version:
LTE-FDD: B1/B2/B3/B4/B5/B7/
B8/B28/B66
GSM: 850/900/1800/1900MHz
Memory : 8MB
Phase Error : RMS phase error <5, peak phase error <20
Max. Output Power : LTE-TDD: Class3(23dBm+1/-3dB) LTE-FDD: Class3(23dBm+-2dB)
Maxi. Frequency Error : ±0.1ppm
Receiving Sensitivity : TD-LTE :≤96dBm(10M) LTE-FDD :≤96dBm(10M)

GNSS
Frequency : BDSB1, 1561.098MHz ； GPS L1,1575.42MHz
RF Channel : Auto Switch Between GPS and Beidou Singal / Dual Channel
Number of Channels : 66
Antenna Size : 25*25*4mm
Positioning Accuracy : ＜10m
Tracking sensitivity :-165dBm
Acquisition sensitivity : -148dBm
TTFF : Avg. hot start: 1sec (open sky) , Avg. cold start: 32sec (open sky)

-Real time tracking :Positioning accuracy <10m in open outdoor environments
-Power cut off alarm : The device will trigger a power cut off alarm when the external
power is disconnected or the connecting cable is cut
-Fall detection alarm : After the device is installed and the device posture is identified, thedevice will report a fall detection alarm when the device posture changes.
-Tamper alarm :Report a tamper alarm when the device is removed
-Low external battery alarm : When the device detects that the external power voltage is lowerthan the set threshold, the device will trigger an low external power
battery alarm.
-Low internal battery alarm : When the device detects that the internal battery voltage is lowerthan the set threshold, the device will trigger an low internal battery
battery alarm
-Overspeed alarm : The vehicle speed threshold can be set through the platform or SMS.When the vehicle's speed exceeds the threshold within the set time,
an overspeed alarm will be reported
Vibration alarm : When the vehicle ignition is off and in a stationary state, the device
detects vehicle vibration and a vibration alarm will be reported
